Insulated Aluminium Roller Garage Doors

Autotherm premium remote controlled roller garage doors

This high end product which we are continually developing is offered at a very competitive price. These doors are one of the most advanced insulated roller garage doors on the market and are easy to fit for a competent DIY person. To assist further we also have an installation video and offer a telephone technical back up service.

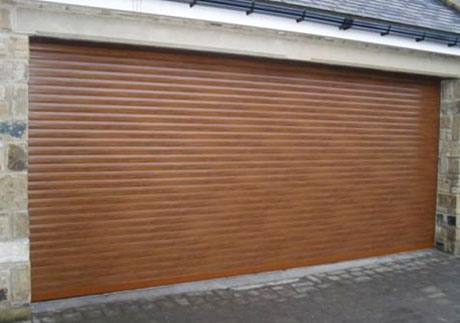

Autotherm Roller Aluminium Garage Door

Our Autotherm insulated roller garage doors are custom made by our fabricators to ensure they fit each space perfectly, and are easy to install and maintain. With many attractive finishes available, it's easy to get the look that you want. All doors are CE marked and fully compliant with all directives and regulations.

Custom made

Our doors are made to measure, which means you get the perfect fit for your garage. Due to the design of the Autotherm door, it can be adapted to accommodate most types of garages (tall or extra wide openings, or even arches). You can order online by simply filling out a short survey form to help you get the right fit, or simply pick up the phone and our team will be able to advise you further.

The doors are also manufactured to suit different installation options, thus allowing doors to be fitted in the more unconventional places. Give us a call or contact us here and we will be able to discuss your specific needs.

Easy installation

Although our Autotherm garage doors are operated by remote, they aren't complex to install. If you're a competent DIY enthusiast, then you should be able to manage, and there's an installation video available, with support available over the phone if you have any problems. If you live in the North East area, then our team can install your doors. Otherwise, we deliver across the UK, using our own vehicle fleet to ensure doors arrive in perfect condition.

insulated roller garage doorinsulated roller garage door installation

9 colour options or 2 woodgrain finishes available

This door is very low maintenance and comes in a choice of 9 colours, from crisp white and cream, to clear, bright colours that look great on a contemporary property. We also offer garage doors with a woodgrain finishes including rosewood, and golden oak, for a rustic, classic finish. With many different styles available, you can easily find a garage door that co-ordinates with your home.*Colours are for illustration purposes only.


White
Ral 9016

Cream
Ral 1015

Green
Ral 6009

Chartwell Green
Ral 6021

Steel Blue
Ral 5011

Red
Ral 3005

Brown
Ral 8019

Anthracite Grey
Ral 7016

Black
Ral 9005

Mahogany / Rosewood
Woodgrain

Golden Oak
Woodgrain

Autotherm construction

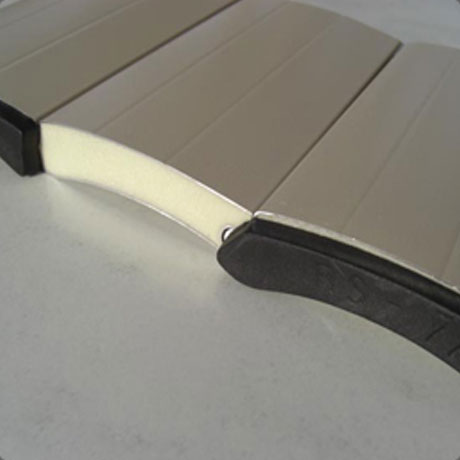

All Autotherm doors are constructed from interlocking 77mm twin walled aluminium slats and filled with CFC-free insulating foam, which combines strength whilst helping increase energy efficiency with a typical IJ value of 5.2 w/m2 K. The doors can easily span an opening up to 4800mm wide and come with a heavy duty weather seal to the bottom section.

interlocking aluminium slats
Remote control operation

Each Autotherm door comes with a high quality remote control system including 2 handsets. Rolling code technology ensures that security is paramount with a unique code generated each time the handset is activated. The remote control unit comes complete with surface mounted 'up', 'down' and 'stop' buttons, has a built in courtesy light, and comes complete with a 3-pin plug.

autoroll remote controlled garage
Security

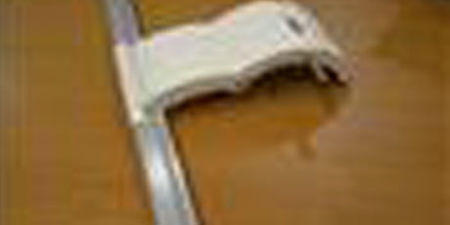

Auto locking is actively engaged via the anti-lift geometry locking straps when the door is closed.

garage door lock
Adaptability

Due to the design of the Autotherm door, it can be adapted to accommodate most types of garages, even those with arches.

arch shaped garage
Safety

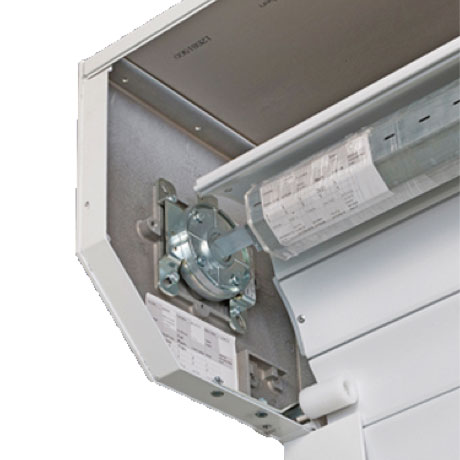

All Premium Autotherm doors have an anti-drop safety brake and come supplied with a bottom rail safety edge which detects an obstruction whilst closing. The door will automatically stop and return to the open position. The remote control unit also has an anti-entrapment in the 'up direction, removing the need to fit a full box to the door. The system also does a complete safety test each time it is operated.

autotherm garage door safety brake
Side plates

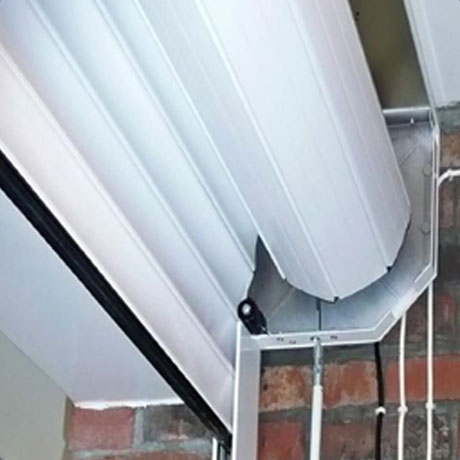

Once fully retracted, the curtain is housed between two side plates, which locate into the guide rails via a cast aluminium eg. This helps distribute the weight of the door onto the guides, whilst simplifying the installation. The curtain is then assisted on its descent by two nylon rollers mounted onto the base of the side plates, which helps reduce wear and makes the door run smoother.

garage door side plates
Motors

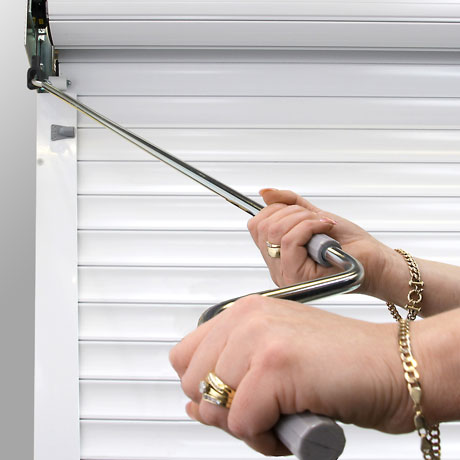

At the time of manufacture, all motors are designed to lift at least double the weight of the door that they are being fitted to. In the event of a power failure, a manual winding handle ensures that the door can be opened from inside the garage. An external manual winding system is also available as an optional extra.

automated garage door with manual override
Guide rails

The guide rails are available in a white, black, brown or anthracite polyester powder coated finish and incorporate double neoprene and brush pile seals, which help prevent against draughts, whilst increasing the insulation value of the door. (Please note that the colour of the guide rails may vary slightly from the door curtain).

garage door guide rails
Headroom

Roller doors are perfect for garages with limited headroom as the tight roll of the door requires only 300mm of headroom for doors up to 3000mm in height. This allows additional roof space in your garage and maximises the drive through height for taller vehicles. Please note that approximately 70mm of the bottom of the door will be visible below the opening, when the door is in the open position.

garage door perfect where there is limited headroom
Side room

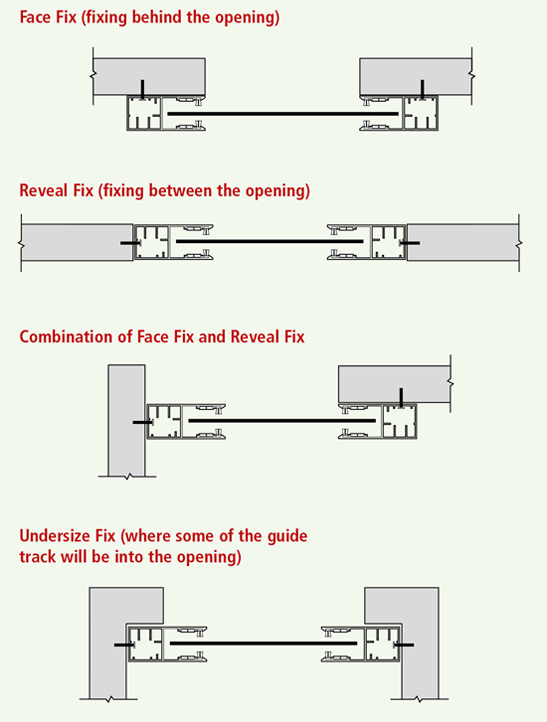

The Autotherm door can be installed either within the opening (reveal fix) if the side room is limited or behind the opening (face fix), allowing any old timber frames to be removed and maximising the drive through width.

various fitting options for autoroll garage doors
Housing cover box
(optional extra)

A front fascia section and back cover can be supplied as an optional extra, in either a white, black, brown or anthracite finish. This helps increase the weather protection and insulation, whilst making the door even more aesthetically pleasing.

garage door fascia
Maintenance

Autotherm garage doors are low maintenance. Manufactured from aluminium and coated with an anti-abrasive polyester finish, which requires only an occasional wipe with a cloth and mild soapy water to remove any excess dirt to reduce the risk of any damage to the door surface.

easy to maintain garage doors

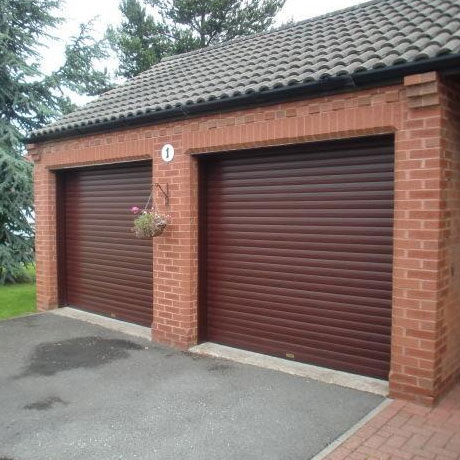

Guarantees

All of our door types are fully compliant and have been independently tested by a UKAS accredited testing laboratory. They are CE marked and come with the relevant declarations. All doors have a 12 month part only guarantee. Unfortunately we cannot offer any warranties on any of the finishes for doors fitted within 1 mile of the sea or salt estuary.

fully compliant and guaranteed roller garage doors

Fitting instructions - downloads & videos

If you're looking for more assistance in the Installation of your roller door, take a look at our installation guides for clear and concise fitting instructions.

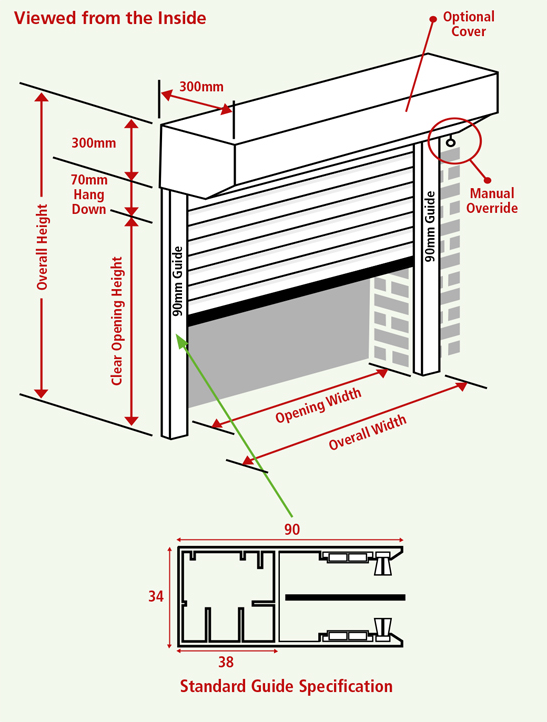

Measurement Guide

measurement guide for autoroll garage door

Installation Options

fixing options for roller garage door


For more details on our range of roller garage doors and shutters, contact our friendly team on
