Home > Steel Roller Garage Doors

Steel Roller Garage Doors

At Autoroll, we have combined the design and strength of a commercial roller shutter door, with our exclusive garage door lath profile, to give an aesthetically pleasing look, especially designed for the domestic market. All doors are CE marked and fully compliant with all directives and regulations. Low maintenance, remote controlled and come in a choice of colours.


Custom Made Steel Roller Garage Doors

Our steel roller shutter garage doors are custom made for each garage opening and because of the way in which they are constructed, it allows you to maximize your drive-through height and width. Tall openings, arches and extra wide openings are not a problem for us to accommodate. These doors are built to a commercial strength and are also suitable for industrial buildings.

Standard features include
  • Remote control operation, complete with two handsets
  • Anti-drop safety brake
  • Bottom rail safety edge
  • Self locking with an internal manual override facility
Optional extras
  • Lockable external override
  • Powder coated canopy and fascia sections
  • Powder coated guides and endplates
Easy installation

Our doors are easy to fit for a competent DIY person. You can view an installation video here and we offer a telephone technical back up service if extra assistance is needed. We deliver throughout the UK and if you live in the North East area, then our team can install your doors.

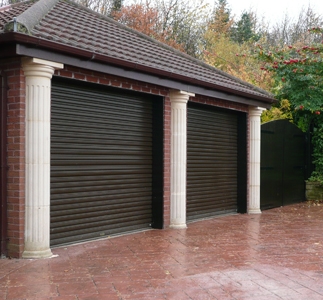

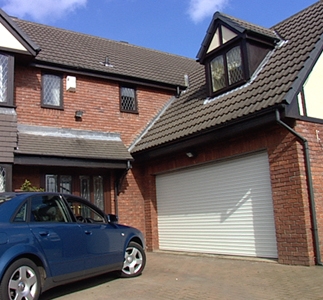

Colour options available

Our Autoroll plastisol coated roller doors come in a choice of colours. The standard door comes with galvanised steel guide rails and end plates, however they can be powder coated a colour as on optional extra. *Colours are for illustration purposes only.


White
BS 00E 55

Cream
BS 10C 31

Juniper Green
BS 12B 29

Poppy Red
BS 04E 53

Goosewing
BS 04E 53

Dark Brown
BS 08B 29

Black
BS 00E 53

Ocean Blue
BS 18C 39

Merlin Grey
BS 18B 25

Golden Oak
Woodgrain

Construction

The door is manufactured from 73mm individual interlocking steel lath sections and the external surface is coated in a leathergrain plastisol finish. The interlocking lath are held in place by nylon endlocks which are riveted to each section. The design of the door also enables it to be easily and economically repaired in the event of accidental damage.

Remote control operation

Each Autoroll door comes with remote control operation and 2 executive style compact handsets with key fobs. Rolling code technology ensures that security is paramount, with a unique code generated each time the handset is activated. The remote control operation allows you to open and close the door from the convenience of your car. The control box has the option of a timed auto close facility and has a built in courtesy light.

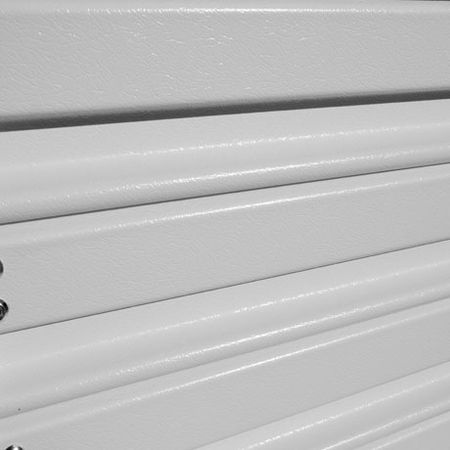

Finish

The door curtain is manufactured from galvanised steel and the external surface is coated with a leathergrain plastisol finish. The internal surface has a light grey transit protection primer which can be painted.

Adaptability

Due to the design of the Autoroll door, it can be adapted to accommodate most types of garages, even those with arches.

Safety

All doors have an anti-drop safety brake and come supplied with a bottom rail safety edge which detects an obstruction whilst closing. The door will automatically stop and return to the open position. The remote control unit also has an anti-entrapment in the 'up direction, removing the need to fit a full box to the door. The system also does a complete safety test each time it is operated.

Headroom

The tight roll of the door requires only 300mm of headroom for doors up to 2500mm overall height and 330mm of headroom for doors up to 3000mm high. This allows additional roof space in your garage and maximizes the drive through height for taller vehicles. Please note that approximately 75mm of the bottom of the door will be visible below the opening, when the door is in the open position.

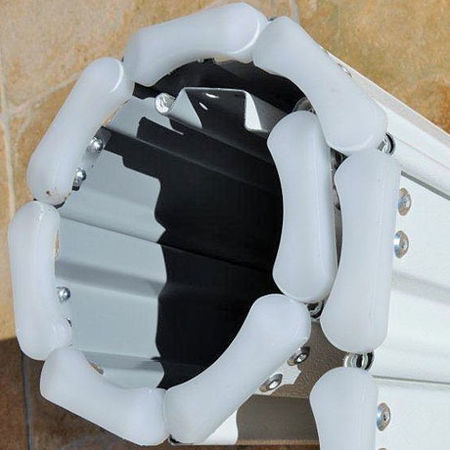

Endplates

The door is manufactured from 73mm individual interlocking steel lath sections and the external surface is coated in a leathergrain plastisol finish. The interlocking lath are held in place by nylon endlocks which are riveted to each section. The design of the door also enables it to be easily and economically repaired in the event of accidental damage.

Motors and manual override

Once fully retracted, the curtain is housed between two end plates which are welded to a full length angle which is then is fixed to the wall at each side of the opening. This design means that the weight of the door is evenly distributed, which is especially useful when there are no fixing points above the opening.

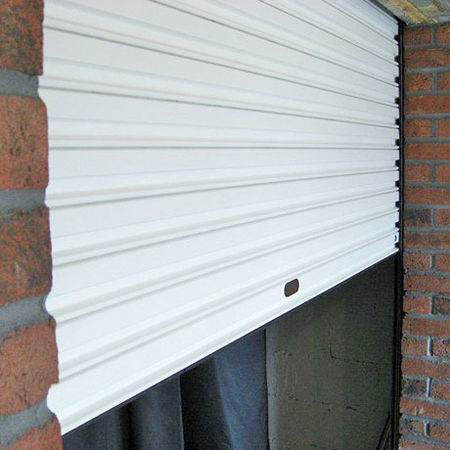

Side room

The Autoroll door can be installed either within the opening (reveal fix) if the side room is limited or behind the opening (face fix), allowing any old timber frames to be removed and maximising the drive through width.

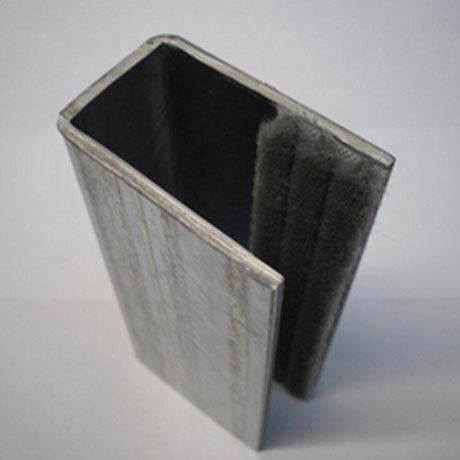

Guide rails

The 3mm thick steel guide rails come in a galvanised finish as standard and depending on the door size, are available in 50mm or 65mm widths. There is also a thick brush pile fitted to the inside front of the guides, which reduces noise whilst helping prevent against draughts.

Guarantees

All Autoroll doors are fully compliant and CE marked. They come with a comprehensive 12 months parts warranty and a 5 year colour warranty on the door curtain.


Fitting instructions - downloads & videos

If you're looking for more assistance in the Installation of your roller door, take a look at our installation guides for clear and concise fitting instructions.


For more details on our range of roller garage doors and shutters, contact our friendly team on
